This function creates a collision rectangle. This is a shape that has a position and a width and a depth and infinite height. See Rectangle for a definition of a rectangle. XY marks on the south west corner of the colshape.

Note

Attaching a rectangle colshape to another element may give unexpected results as the origin is not at the rectangle centre. Try using a collision circle for attaching instead.

Tip

To visualize a colshape when writing scripts, use the client console command showcol.

OOP Syntax Help! I don't understand this!

• Method:ColShape.Rectangle(...)

Syntax

colshape|false createColRectangle ( float fX, float fY, float fWidth, float fDepth )

Required Arguments

• fX: The X position of the collision rectangle's west side.
• fY: The Y position of the collision rectangle's south side.
• fWidth: The collision rectangle's width.
• fDepth: The collision rectangle's depth.

Returns

• colshape|false: col-rectangle

Returns a colshape element if successful, false if invalid arguments were passed to the function.

Code Examples

Example 1 Example 2 (OOP)

server

This example displays a chat message when a player enters the colshape and allows the colshape to be created using a console command set_zone.

local theZone

local function shapeHit(hitElement, matchingDimensions)
    if (hitElement and getElementType(hitElement) == 'player' and matchingDimensions) then
        outputChatBox(getPlayerName(thePlayer).. " is in the zone!")
    end
end

function setZone(playerSource, commandName, fX, fY, fWidth, fDepth)
    local fX, fY, fWidth, fDepth = tonumber(fX), tonumber(fY), tonumber(fWidth), tonumber(fDepth)
    if (not fX) or (not fY) or (not fWidth) or (not fDepth) then
        outputChatBox("Syntax: /"..commandName.." [X] [Y] [Width] [Depth]", playerSource)
    else
        if (theZone) then
            destroyElement(theZone)
        end
        local tempCol = createColRectangle(fX, fY, fWidth, fDepth)
        addEventHandler("onColShapeHit", tempCol, shapeHit)
        outputChatBox("Zone has "..(theZone ~= nil and "moved" or "created").."!", playerSource)
        theZone = tempCol
    end
end
addCommandHandler("set_zone", setZone, false, false)

server

OOP Required

This example displays a chat message when a player enters the colshape and allows the colshape to be created using a console command set_zone.

local theZone

local function shapeHit(hitElement, matchingDimensions)
    if (hitElement and hitElement.type == 'player' and matchingDimensions) then
        outputChatBox(thePlayer.name.. " is in the zone!")
    end
end

function setZone(playerSource, commandName, fX, fY, fWidth, fDepth)
    local fX, fY, fWidth, fDepth = tonumber(fX), tonumber(fY), tonumber(fWidth), tonumber(fDepth)
    if (not fX) or (not fY) or (not fWidth) or (not fDepth) then
        playerSource:outputChatBox("Syntax: /"..commandName.." [X] [Y] [Width] [Depth]")
    else
        if (theZone) then
            theZone:destroy()
        end
        local tempCol = ColShape.Rectangle(fX, fY, fWidth, fDepth)
        addEventHandler("onColShapeHit", tempCol, shapeHit)
        playerSource:outputChat("Zone has "..(theZone ~= nil and "moved" or "created").."!")
        theZone = tempCol
    end
end
addCommandHandler("set_zone", setZone, false, false)

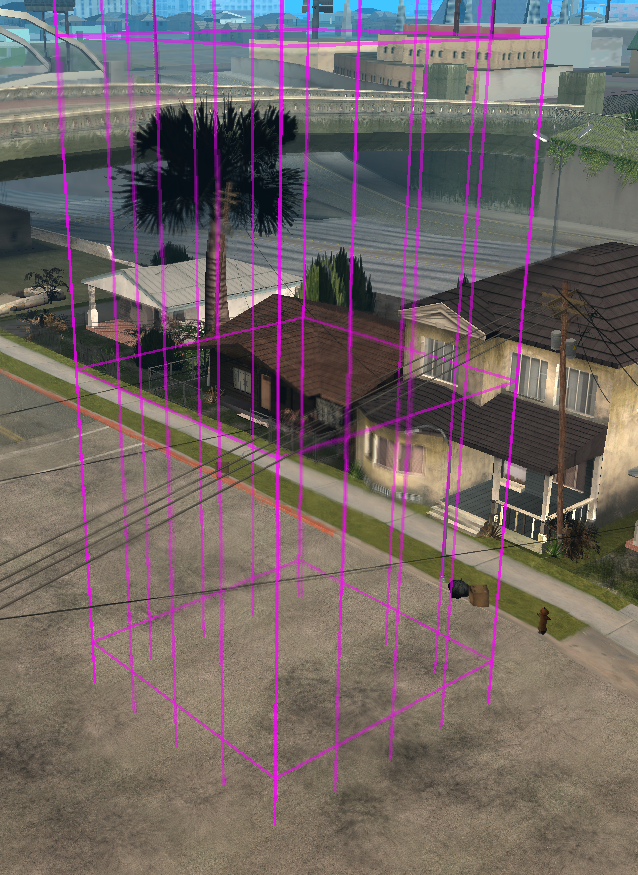

Gallery

Click on the image to view the full preview along with the description.
