This function creates a collision tube. This is a shape that has a position and a 2D (X/Y) radius and a height. See Cylinder for a definition of a tube. A tube is similar to a colcircle, except that it has a limited height, this means you can limit the distance above the position defined by (fX, fY, fZ) that the collision is detected.

Tip

To visualize a colshape when writing scripts, use the client console command showcol.

OOP Syntax Help! I don't understand this!

• Method:ColShape.Tube(...)

Syntax

colshape createColTube ( float fX, float fY, float fZ, float fRadius, float fHeight )

Required Arguments

• fX: The position of the base of the tube's center on the X axis.
• fY: The position of the base of the tube's center on the Y axis.
• fZ: The position of the base of the tube's center on the Z axis.
• fRadius: The collision tube's radius.
• fHeight: The collision tube's height.

Returns

• colshape: col-tube

Returns a colshape element if successful, false if invalid arguments were passed to the function.

Code Examples

Example 1 Example 2 (OOP)

server

This example displays a chat message when a player enters the colshape and allows the colshape to be created using a console command set_zone.

local theZone

local function shapeHit(hitElement, matchingDimensions)
    if (hitElement and getElementType(hitElement) == 'player' and matchingDimensions) then
        outputChatBox(getPlayerName(thePlayer).. " is in the zone!")
    end
end

function setZone(playerSource, commandName, fX, fY, fZ, fRadius, fHeight)
    local fX, fY, fZ, fRadius, fHeight = tonumber(fX), tonumber(fY), tonumber(fZ), tonumber(fRadius), tonumber(fHeight)
    if (not fX) or (not fY) or (not fZ) or (not fRadius) or (not fHeight) then
        outputChatBox("Syntax: /"..commandName.." [X] [Y] [Z] [Radius] [Height]", playerSource)
    else
        if (theZone) then
            destroyElement(theZone)
        end
        local tempCol = createColTube(fX, fY, fZ, fRaduis, fHeight)
        addEventHandler("onColShapeHit", tempCol, shapeHit)
        outputChatBox("Zone has "..(theZone ~= nil and "moved" or "created").."!", playerSource)
        theZone = tempCol
    end
end
addCommandHandler("set_zone", setZone, false, false)

server

OOP Required

This example displays a chat message when a player enters the colshape and allows the colshape to be created using a console command set_zone.

local theZone

local function shapeHit(hitElement, matchingDimensions)
    if (hitElement and hitElement.type == 'player' and matchingDimensions) then
        outputChatBox(thePlayer.name.. " is in the zone!")
    end
end

function setZone(playerSource, commandName, fX, fY, fZ, fRadius, fHeight)
    local fX, fY, fZ, fRadius, fHeight = tonumber(fX), tonumber(fY), tonumber(fZ), tonumber(fRadius), tonumber(fHeight)
    if (not fX) or (not fY) or (not fZ) or (not fRadius) or (not fHeight) then
        playerSource:outputChat("Syntax: /"..commandName.." [X] [Y] [Z] [Radius] [Height]")
    else
        if (theZone) then
            theZone:destroy()
        end
        local tempCol = ColShape.Tube(fX, fY, fZ, fRaduis, fHeight)
        addEventHandler("onColShapeHit", tempCol, shapeHit)
        playerSource:outputChat("Zone has "..(theZone ~= nil and "moved" or "created").."!")
        theZone = tempCol
    end
end
addCommandHandler("set_zone", setZone, false, false)

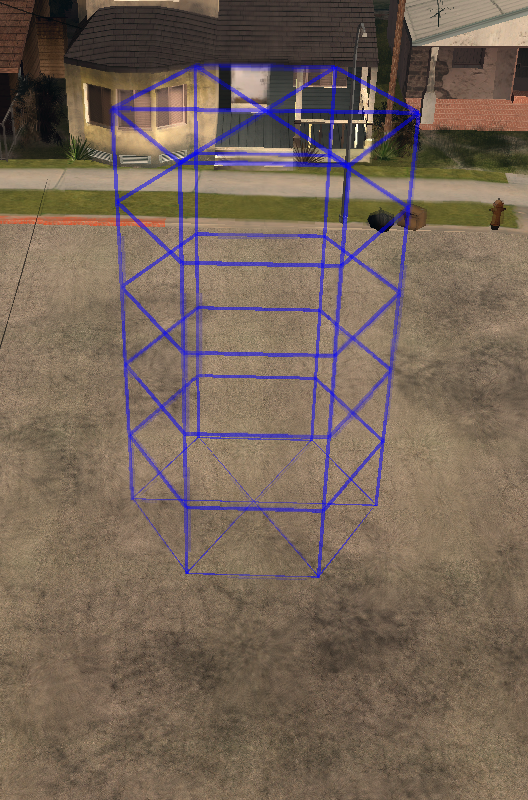

Gallery

Click on the image to view the full preview along with the description.
